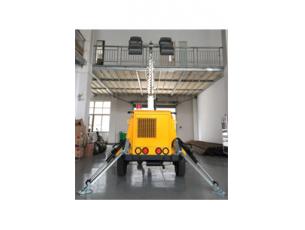

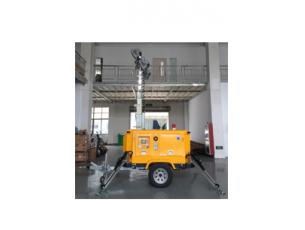

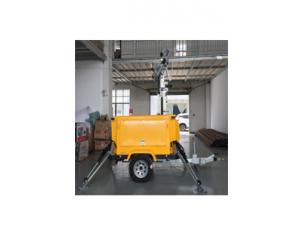

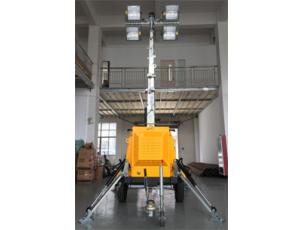

產品特點:
※ 高亮度、大范圍照明：采用4盞1000瓦金鹵燈、燈桿升起10米后燈光覆蓋半徑可達120-150米。整體照明遠近兼顧、照明距離遠，照射面積大。
※ 運力強勁，經濟環保：燈塔配置優質的國際知名品牌的發電機組，動力強勁。機組與底座之間采用減震設計，減少震動，使運行更加安全穩定，高效節能。
※全方位、多角度投射：燈桿可在水平方向作360度旋轉調節，360度照射無死角。燈頭可在垂直方向0度一90度范圍內任意改變投射角度。
※人性化設計，操控簡單：控制系統集成化，控制開關，控制顯示屏，指示儀表全部集成與同一面板上，方便操作人員操作和實時監控。全自動操作設計，發動機啟動、燈桿升降、液壓支腳收放、燈具開關全部獨立自動控制、操作簡便輕松快捷。
※安全可靠、運輸方便：液壓支腳展開面積大，支撐力強，加上先進的整機一體化配重設計，具有良好的抗風性能，可保證在8級大風下可靠工作。
※ 多種移動方式，可采用拖車系統，也可采用叉車、吊車進行移動和運輸。
|
序號 |
項目名稱 |
參數項 |
參數值 |
|
1 |
發電機組 |
久保田美奧迪發電機組 |
KUBOTA+ MECC |
|
|
|
發動機型號 |
D1105-BG |
|
|
|
發電機型號 |
PI044F 單相 |
|
|
|
控制模塊 |
DSE3110 |
|
|
|
功率 |
7.2KW |
|
|
|
電壓/頻率 |
220V/50HZ |
|
|
|
油耗 |
2L/h |
|
|
|
油箱容量 |
75L |
|
|
|
可連續工作時間 |
40h |
|
|
|
電氣系統 |
12V |
|
|
|
噪音等級 |
≤70db 7米處 |
|
|
|
柴油型號 |
0# |
|
|
|
最大拖行速度 |
80km/h |
|
|
|
收納尺寸 |
約2800*1650*2300mm |
|
|
|
伸展尺寸 |
約2800*3000*9000mm |
|
|
|
總重 |
1250kg |
|
2 |
燈具 |
燈具功率 |
4×1000W金鹵燈 |
|
|
|
翻轉角度(電動) |
0-75° |
|
3 |
燈桿 |
伸限(液壓) |
9m |
|
|
|
水平旋轉 |
360° |
|
|
|
上升/下降時間 |
45s/18s |
|
|
|
抗風等級 |
75km/h |
|
4 |
支撐腿 |
支撐腿支撐方式 |
手動 |
| Model | Hydraulic Mobile Light Tower | |
| Genshent Technical Data | Mo-806 | Mo-520 |
| Dimension (L*W*H)mm | 2836*1350*2480 | 2950*1350*2950 |
| Mast Height (Fully Extenled) | 9M | 10M |
| Weight ( Net ) | 1140kg | 1150kg |
| Rated Voltage | 220V(Single Phase ) | |
| Rated Power | 6KVA | |
| Power Outlet Sockets | 2PCS*10A ( AC220V 1 Phase ) | |
| Input Voltage | 220V(Single Phase ) | |
| Fuel Tank Capacity | 100liters (26.5US Gallons) | |
| Fuel Tank Operating Hours | 50 hours | |
| Fuel Consumption (g/kw.h) | NA/252/248 | |
| Acoustic Pressure | 62dB (A) at 7 away | |
| Load Capacity For 40"HC(Units ) | 8 | |
| Engine | Perkings | Kubota |
| Engine Model | 403D-11G | D1105 |
| Speed (Rpm) | 1500/1800 | 1500/1800 |
| Prime Power ( Kw ) | 8.4/10.3 | 8.4/10.1 |
| Cooling System | water -cooled | water -cooled |
| Oil Capability | 4.9L | 5.1L |
| Emission Level | NA / Tier 4 optional | NA / Tier 4 optional |
| Alternator | Italy Mecc alte | Italy Mecc alte |
| Alternator Model | LT3N-130/4(100/4) | LT3N-130/4(100/4) |
| Frequency ( Hz ) | 50/60 | 50/60 |
| Continued Power (Kw) | 6 | |
| Alternator | Brushless Single phase | |
| Excitation Mode | Capacitor exciter | |
| Rating Voltage (V ) | 220V | |
| Alternator Insulation | H | |
| Protection Grade | Ip23 | |
| Mast | Hydraulic Type | |
| Mast Height | 9m | 10m |
| Section No.(Extended) | 9 | |
| Mast Rotation | 360 ° manual | |
| Mast Extension Time | 14 Seconds | |
| Mast Descend Time | 20 Seconds | |
| Lighting | LAMP | |
| Type of lights | Metal Halide Lamp | |
| Number Power of Lights | 4*1000W | |
| Mast Lighting & Extension | Hydraulic Operation | |
| Light angle turning | Electric | |
| Luminous Efficiency | 80Lumens/ Watt | |
| Lamps Rotation | 75° （ Automatic ) | |
| Protection Glass | IP65 | |
| Luminous Flux | 4*99000LM | |
| Color Temperature | 4000K | |
| Trailer | Trailer | |
| Manufacturer | AL-KO | SUOEN |
| Braking System | Parking Barcking /Driving barking is option | |
| Hitch | Ball Type /O Ring for option | |
| Tire Rim Size | 185/14" | |
| Speed (Rpm) | <80km/h | |
