用 途:
* 以其優越的性能,特別適用于地震、防洪防汛、搶險救災等緊急情況;國道、高速公路的交通管制、事故處理等各種應急現場;鐵路施工及搶修;機場、碼頭、體育場館、賽車場等大型公共場所緊急照明光源。報道新聞、影視制作現場的快速光源;電力、水利、天然氣、電信、公路等各種緊急搶修現場;消防、警察、部隊等特殊用途。
產品特點:

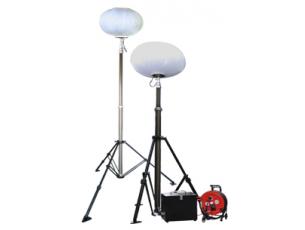

※ :慢射球狀燈體,高效照明,近似于自然光。月球燈燈體由堅定的鉛材料和不銹剛組成,工作高度4.5米(或6米可選),電源電壓220V/50HZ,功率1000W,燈頭光通量90000LM。
※ ::防眩目燈光360°大范圍照明,無陰影、不刺眼,減輕施工人員疲勞感、確保安全。
※:綠色環保,無光線污染,美化施工環境.
※:照明球體上可做廣告,提高企業知業度。
※:新式減速絞盤,使升降更加輕便順暢。
Genshent Technical Data | Mo-1100Q | Mo-1000Q |
Dimension (L*W*H)mm | 550*350*800 | 200*200*1600 |
Mast Height (Fully Extenled) | 4m | 3.5m |
Weight ( Net ) | 98kg | 57kg |
Rated Voltage | 220V(Single Phase ) | 220V(Input Power) |
Rated Power | 2.2KVA | / |
Power Outlet Sockets | 2PCS*10A | / |
Input Voltage | 220V(Single Phase) | / |
Fuel Tank Capacity | 15Liters | / |
Fuel Tank Operating Hours | 13 hours | / |
Fuel Consumption (g/kw.h) | NA | / |
Acoustic Pressure | 62dB (A)7m | / |
Load Capacity For 40"HC(Units ) | 60 | / |
Engine | City power supply | |
Engine Model | EC2500CX | / |
Speed (Rpm) | 3000 | / |
Prime Power ( Kw ) | 2.2 | / |
Cooling System | Air -cooled | / |
Oil Capability | 1.1L | / |
Emission Level | NA | / |
Alternator | Italy Mecc alte | / |
Alternator Model | G*160H1 | / |
Frequency ( Hz ) | 50 | / |
Continued Power (Kw) | 2.2 | / |
Alternator | Brushless | / |
Excitation Mode | Capacitor exciter | / |
Rating Voltage (V ) | / | |
Alternator Insulation | / | |
Protection Grade | / | |
Mast | Pneumatic Operation Mast | |
Mast Height | 4m | |
Section No.(Extended) | 3 | |
Mast Rotation | / | |
Mast Extension Time | / | |
Mast Descend Time | / | |
Lighting | LAMP | |
Type of lights | Metal Halide Lamp | |
Number Power of Lights | 1000W | |
Mast Lighting & Extension | Pneumatic operation | |
Light angle turning | / | |
Luminous Efficiency | 80Lumens /Watt | |
Lamps Rotation | / | |
Protection Glass | IP65 | |
Luminous Flux | 1*99000LM | |
Color Temperature | 4000K | |
Trailer | Trailer | |
Manufacturer | SUOEN | |
Braking System | Foot brake | |
Hitch | / | |
Tire Rim Size | Φ156mm | |
Speed (Rpm) | / |
